(NaCl)NCl- clusters
We model the clusters by a Coulomb plus Born-Meyer potential
and a Welch potential.

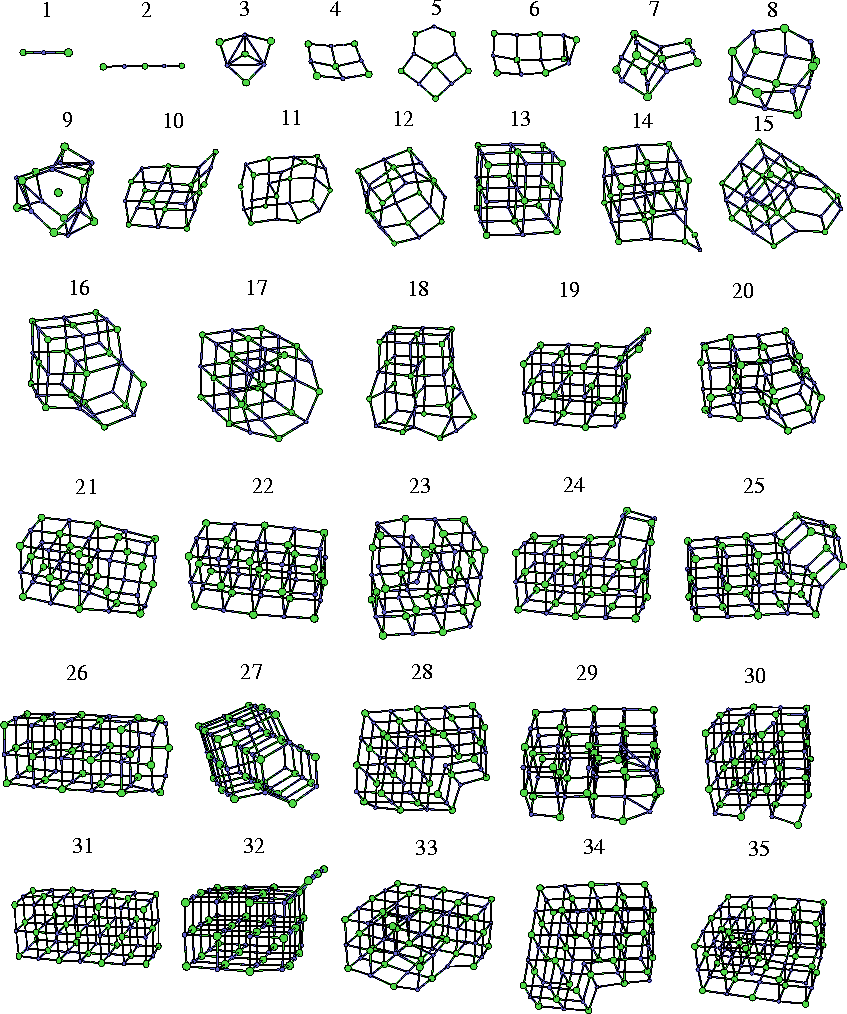

- Pictures of Coulomb plus Born-Meyer Global minima

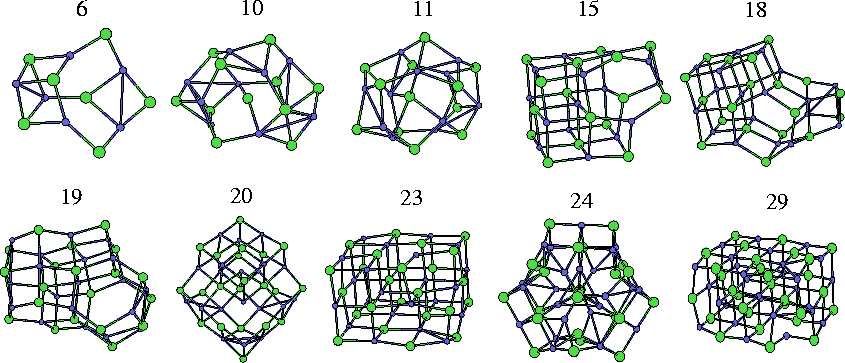

- Pictures of Welch Global minima (only those that differ from
the C+BM global minima)
Points files for each minimum are accessible from the Table.
The work described on the above pages has been published in
- J.P.K. Doye and D.J. Wales, Phys. Rev. B 59, 2292-2300 (1999)
Structural transitions and global minima of Sodium Chloride Clusters
If you can improve on any of the results given in these pages email me,
and I will update the database.
(NaCl)NCl- Clusters: Table of Global Minima
Global minima for (NaCl)NCl- clusters
with N<36.
For each minimum the energy and point group are given.
Click on an energy to access the points file for the structure in Cartesian coordinates.
The unit of distance is the bohr.
Alternatively, click here to access a tar file containing all the points.
|
|
|
